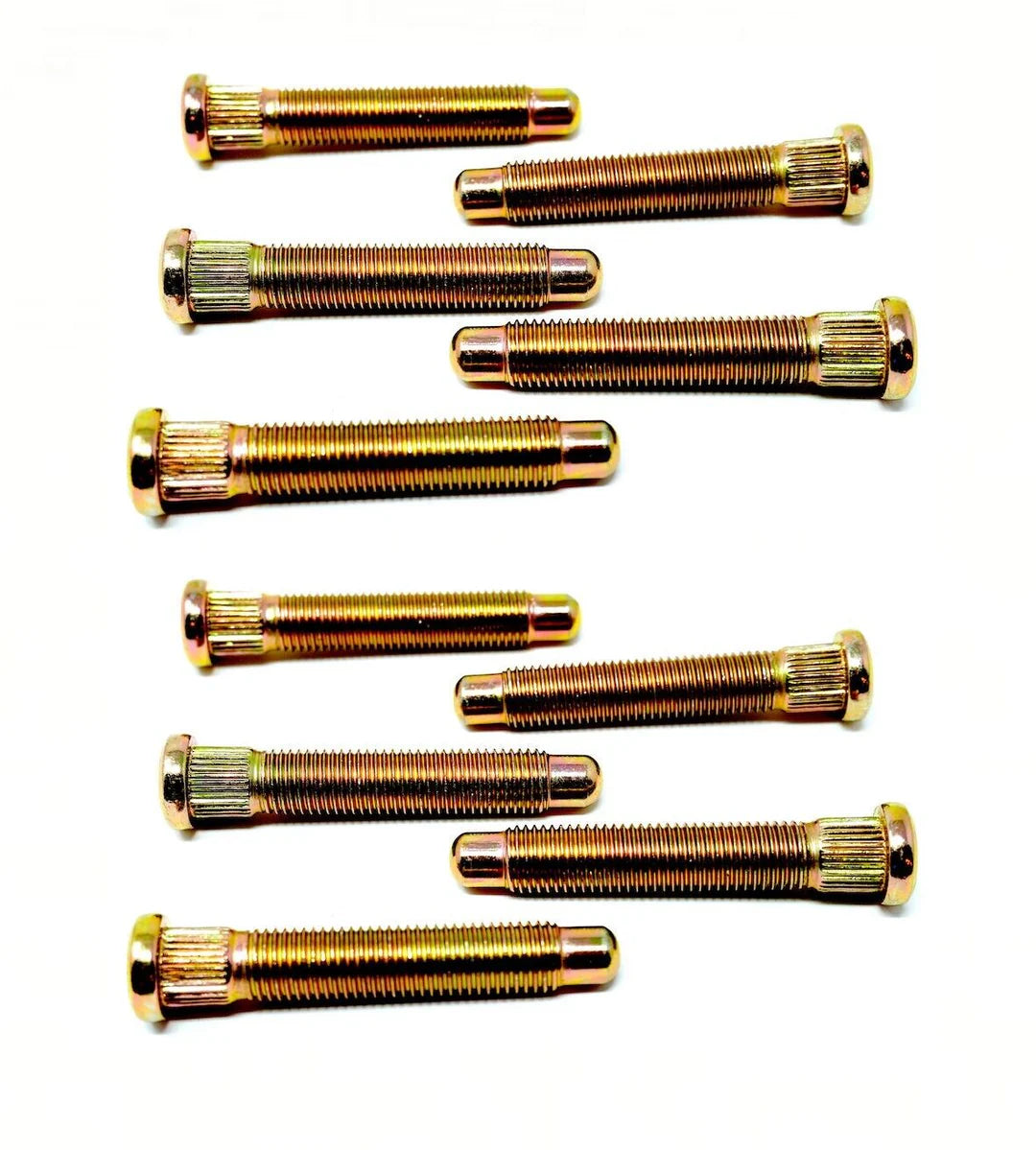

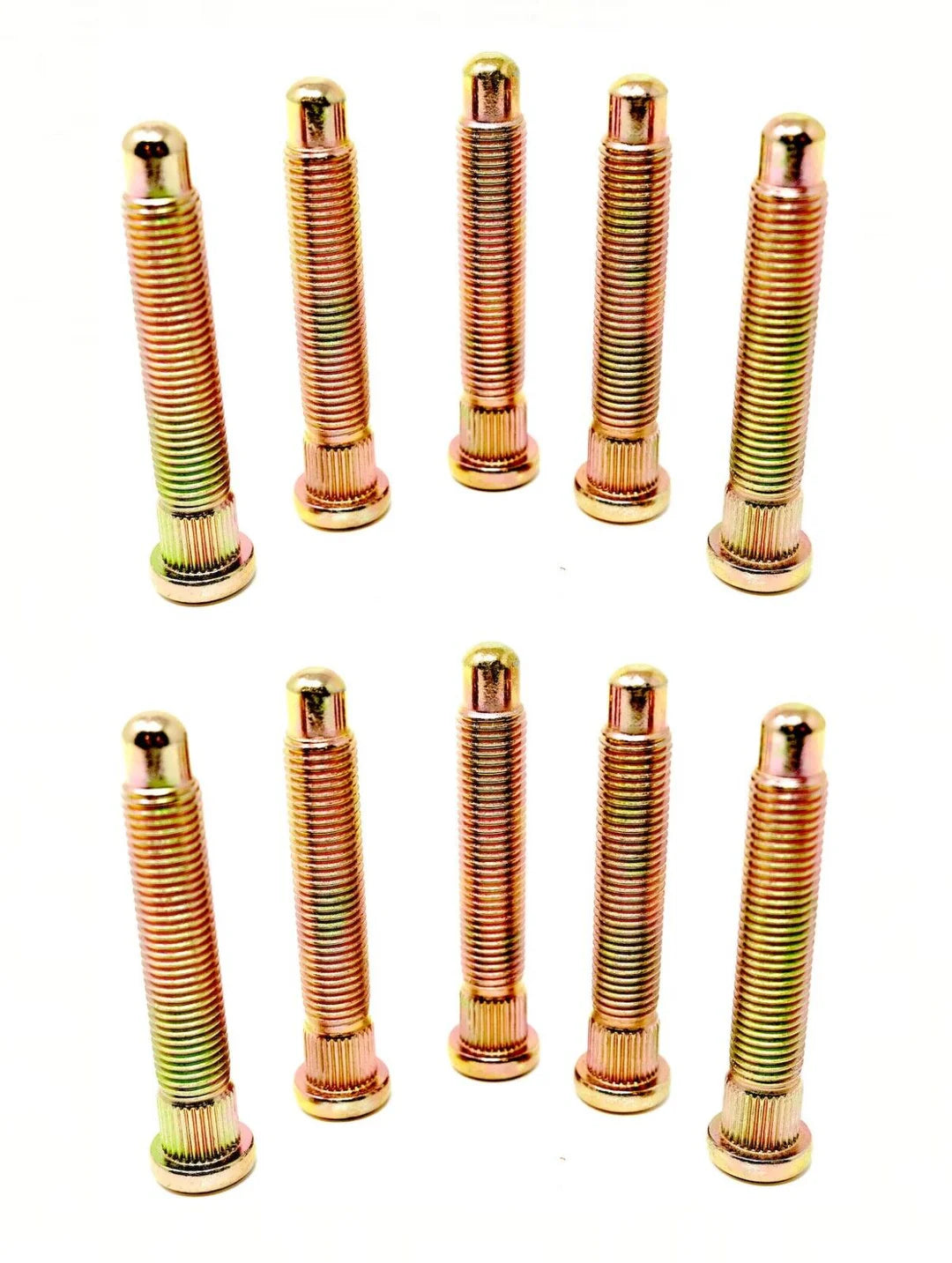

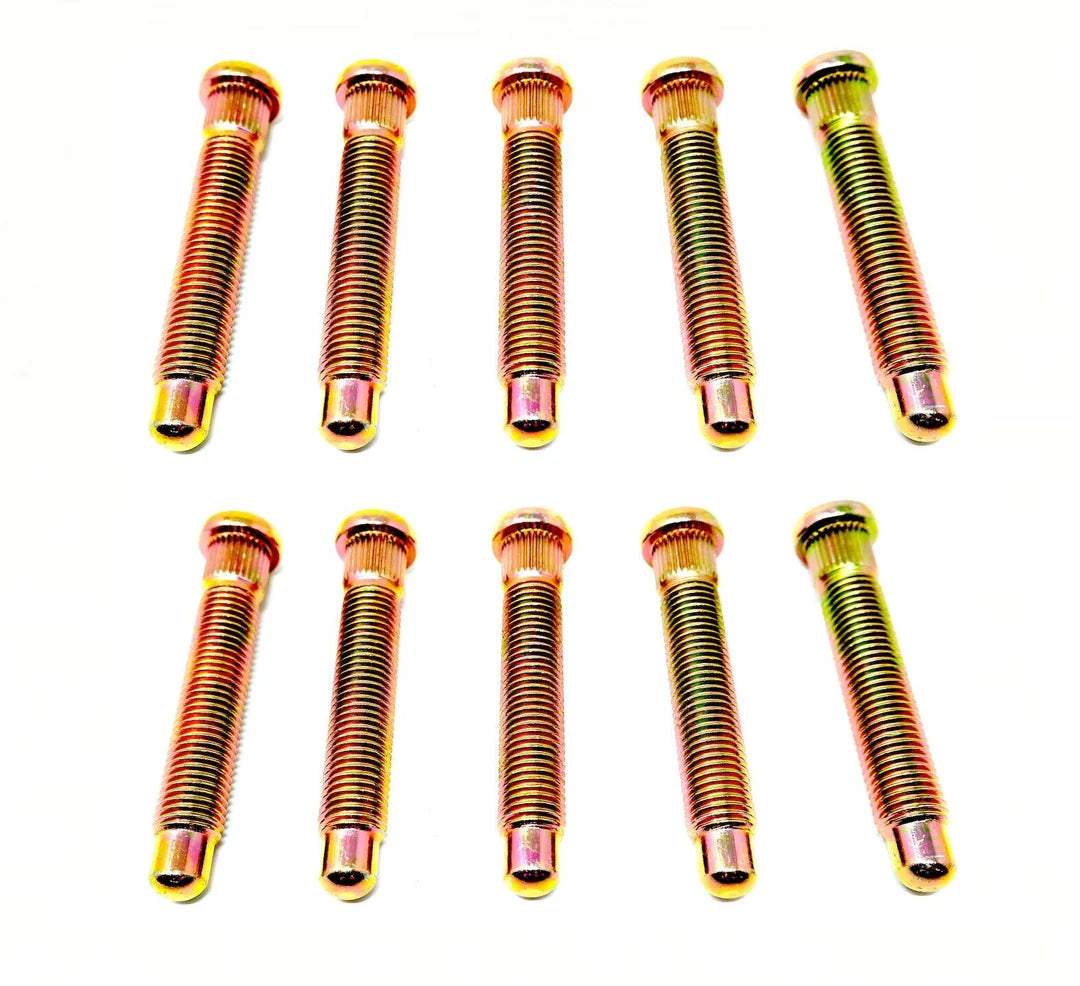

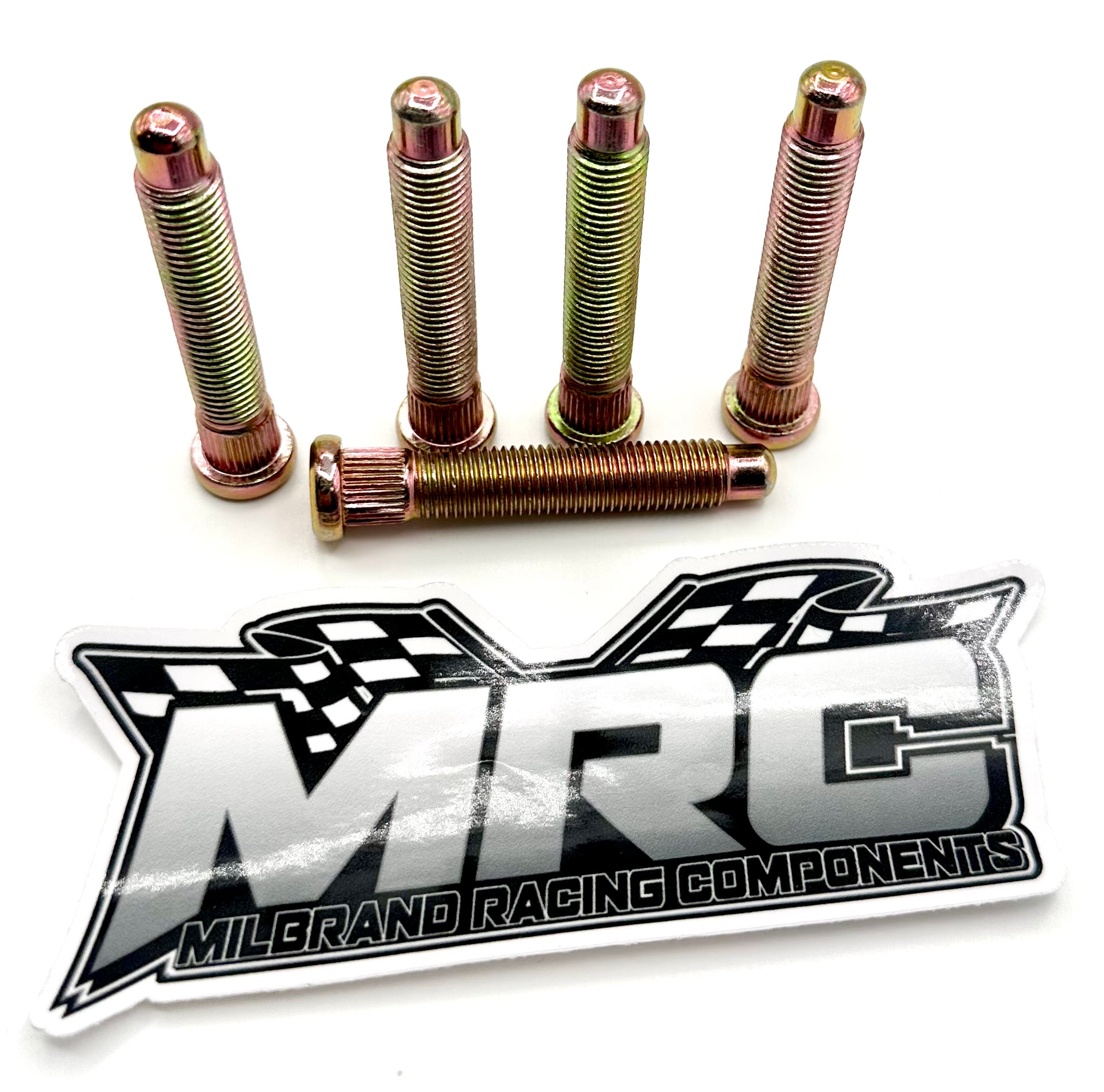

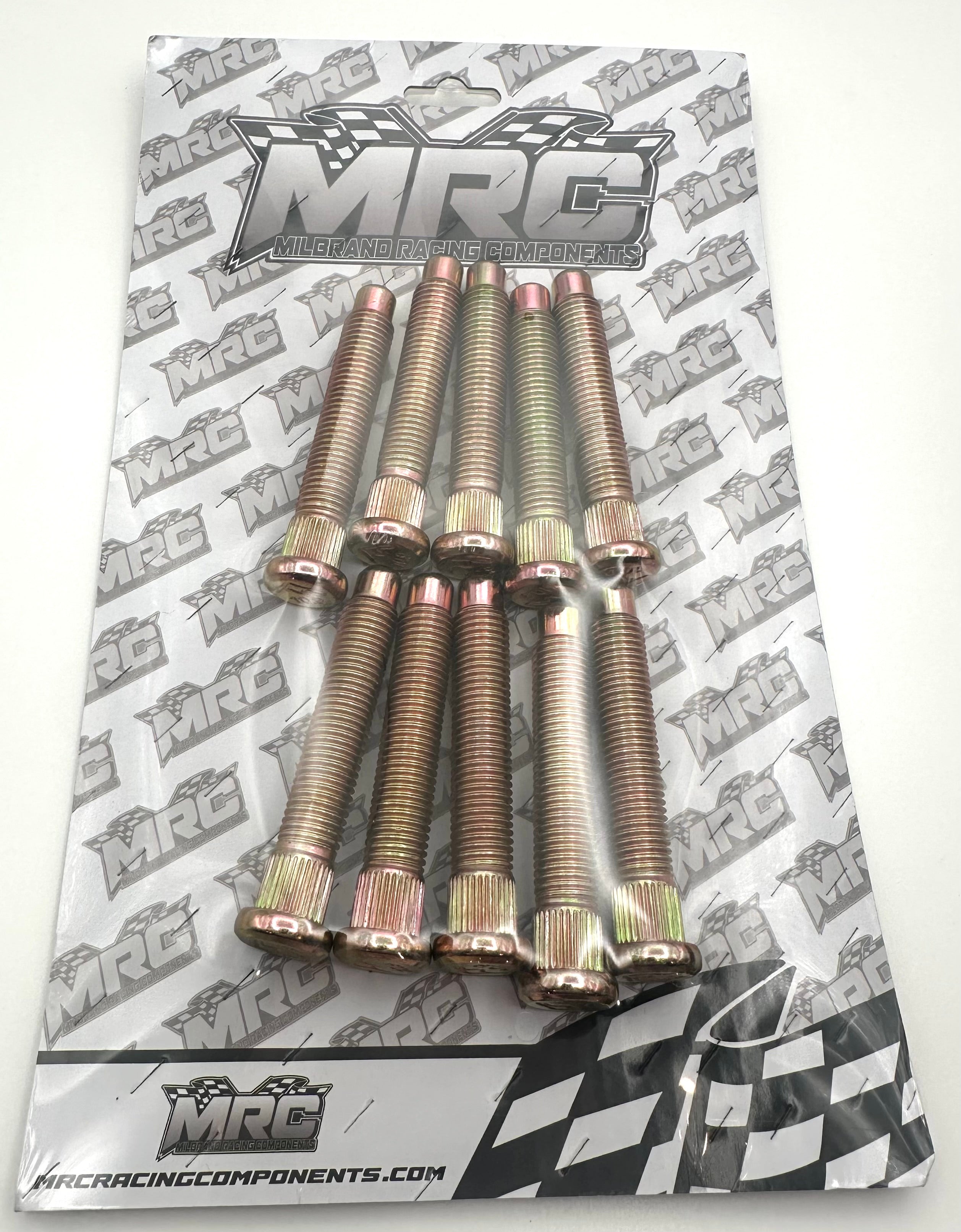

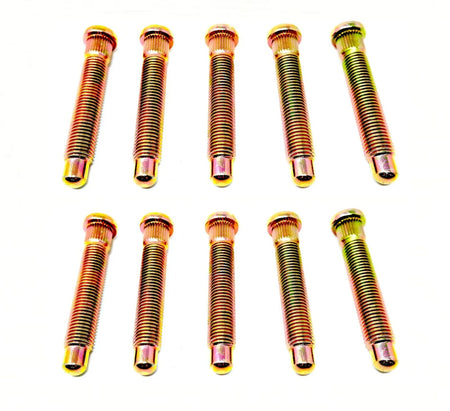

Honda - Acura - 55mm Racing Wheel Studs

Sold by the stud

Knurl Diameter 0.485˝

UHL 2.850˝

Knurl Length 0.275˝

Nose Length 0.350˝

Diameter - Pitch M12 x 1.5

Wheel Stud Hole Size - Cast Iron/Steel Hub 0.469˝ - 0.479˝

Cast Iron/Steel Hub Drill Bit Size (actual dim.) 12mm (0.472˝)

Wheel Stud Hole Size - Aluminum Hub 0.469˝ - 0.475˝

Aluminum Hub Drill Bit Size (actual dim.) 12mm (0.472˝)

Thread Size: m12 x 1.5 Bolt

Type: Pin Bolts Grade: 10.9

Interchange Part# 100-7711, 1007711

1998-2002 Honda Accord V6

2006-2011 Honda Civic

1997-2001 Honda Prelude

1997-2001 Acura Integra Type R

2002-2006 Acura RSX

2004-2008 Acura TSX

2001-2003 Acura CL

1996-1998 Acura 3.2TL V6 (does NOT fit 1995-1998 2.5TL)

1999-2003 Acura TL
