Designed Specifically For Drag Racing
Double Adjustable Rear Coil-Over Shock
1992-2001 Civic
1989-1991 Civic / 1989-1991 CRX
Would need to install 1992-2001 Civic knuckles
Sold as Each
Features
• Lightweight aluminum body
• Billet aluminum upper mount
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick adjustments for varying conditions
• Rotating knobs clockwise stiffens valving
• Coil-over design simplifies changes to ride height
• .563″ bumper height
• Ability to be rebuilt or revalved
• Accepts 12″ x 2.50″ I.D. spring

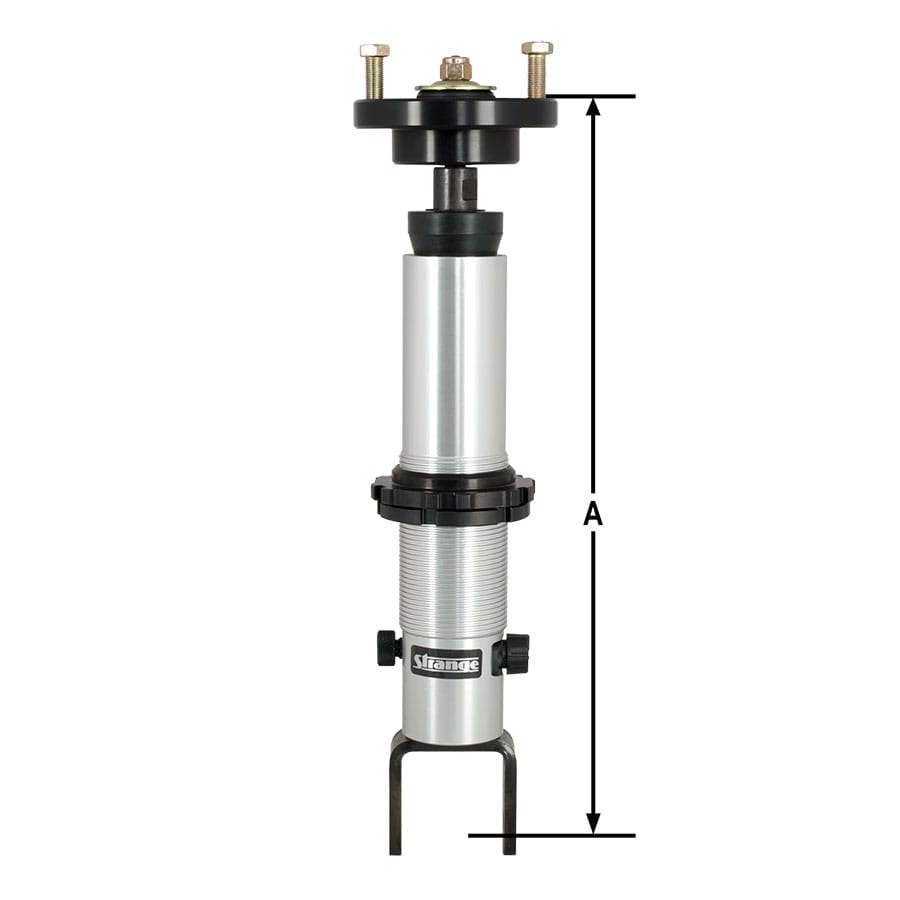

Dimension A
Without bumper
• 18.582″ extended
• 13.947″ compressed
• 4.630″ stroke
Dimension A
With bumper installed
• 18.582″ extended
• 14.51″ compressed
• 4.072″ stroke
Recommended Spring Rate
• 600-800 lbs
• Consult your chassis builder
Adjustments
Softer compression allows more weight transfer to the rear tires
Stiffer compression reduces weight transfer to the rear tires
Extension alters reaction to bumps in the track
